GARMENT CAD INKJET PLOTTER

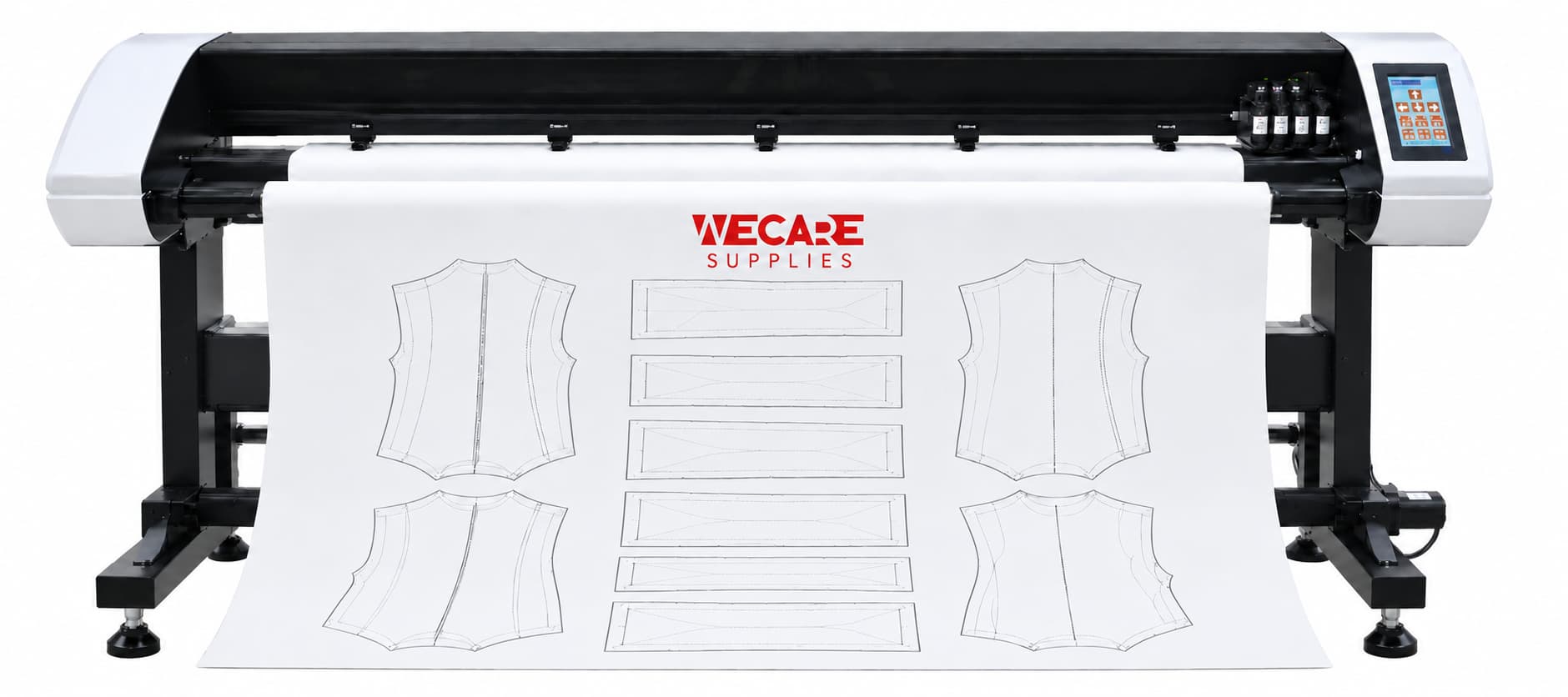

The WECARE Garment CAD Inkjet Plotter is a large-format garment pattern plotter designed for CAD rooms, pattern-making departments and apparel factories, helping teams output digital garment patterns clearly and efficiently on plotting paper.
OVERVIEW
The WECARE Garment CAD Inkjet Plotter is designed for garment CAD rooms, pattern rooms and apparel production environments that require reliable large-format pattern plotting and efficient daily output. With 2-cartridge and 4-cartridge configurations, servo motor control, automatic paper feeding and multiple working-width options, the system supports different production capacities while maintaining a practical CAD-to-paper workflow.
USB and network connectivity, HPGL / PLT file support and compatibility with common garment CAD workflows make the plotter suitable for pattern making, marker printing and long-duration production use.
Multiple head configurations allow customers to select the output capacity that better fits their CAD room requirements.
The feeding and take-up system is designed to support stable paper movement during long plotting jobs.
Designed to connect garment CAD files with practical daily pattern and marker plotting workflows.
AVAILABLE CONFIGURATIONS
Available configurations vary by printing width and cartridge setup. Contact WECARE to confirm the most suitable model for your CAD room.
The plotter uses a replaceable CAD 45 / HP45A-type cartridge system, supporting practical cartridge replacement and stable daily pattern plotting.
USE CASES
Daily pattern plotting for apparel production, marker printing and pattern development.
Clear output of garment pattern pieces for fitting, sampling and review.
Plot markers and patterns before downstream cutting and garment production.
Support garment sample development, pattern making and production preparation.
Large-format pattern plotting for selected textile and soft-goods workflows.
TECHNICAL WORKFLOW
Configurations support common garment pattern and marker widths.
Two-head and four-head configurations support different output requirements.
USB and network connectivity fit established CAD room workflows.
Paper feeding and collection help teams manage continuous output.
GARMENT CAD WORKFLOW & COMPATIBILITY
The WECARE garment CAD inkjet plotter is designed for garment CAD rooms and pattern-making workflows. Compatibility should be confirmed by software, file format, machine configuration and the customer's actual output setup.
Customers using Richpeace, Gerber AccuMark, Lectra, Audaces, Sinajet, TKT or Algotex can send their workflow details for confirmation. Systems such as New Power, Jingdex, Jinghui and ATP may use different software, file formats and hardware configurations, so each setup should be reviewed before ordering.
Check Garment CAD Equipment CompatibilityFAQ
It turns digital garment patterns and markers into clear, full-scale output on plotting paper for review, sampling and production preparation.
A garment CAD plotter is built for continuous large-format pattern and marker output used in apparel workflows, rather than standard office document printing.
Choose CAD 45 A+, Grade A or Regular according to the required print quality, daily production volume and cost priority.
Selected garment CAD plotter configurations use CAD 45 / HP45-type cartridges. Confirm the machine model, head configuration and current cartridge reference before ordering.
Software and file-format support depends on the installed CAD system and plotter configuration. Send the software name, file format and output setup to WECARE for confirmation.
It is designed for selected garment CAD workflows, but compatibility must be confirmed against the software, file format, machine configuration and output setup.
The cartridge count depends on the selected head configuration. WECARE offers plotter configurations for different output requirements, so confirm the exact setup before ordering consumables.
Use plotter paper suitable for full-scale garment patterns and markers. Confirm the required paper width, weight and handling requirements for the selected plotter configuration.
Send the CAD software name, file format, current machine model, head configuration, cartridge reference and workflow details to WECARE for review.
CONNECTED WORKFLOW
The Garment CAD Inkjet Plotter connects digital CAD pattern output with large-format pattern plotting in the garment CAD room. CAD 45 A+, Grade A and Regular ink cartridge options support pattern review, garment sample development and downstream production preparation.
CAD 45 / HP45-type and HP51645A cartridge references may be used in selected configurations. Confirm the plotter model, head configuration and current garment plotter ink cartridge before ordering.
High-density output for customers who need premium print performance and stable production results.
Balanced print quality and cost efficiency for daily garment CAD room production.
A practical and economical option for standard plotting and cutting workflows.
WHY WECARE
WECARE combines product knowledge, application guidance, supply-chain coordination and regional technical support to help garment teams build dependable workflows.
Solutions are matched to the workflow, capacity and output requirement.
Equipment, compatible consumables and parts are considered together.
Headquarters capability is supported by regional customer-facing teams.
