CAD 45 INK CARTRIDGES
WECARE CAD 45 pigment ink cartridges for compatible garment plotters and cutters, with options for different output and production priorities.
OVERVIEW
The WECARE CAD 45 ink cartridge is built on the HP45 / 51645A thermal inkjet platform widely used across garment CAD plotting, pattern printing and marker workflows.
With approximately 42ML of pigment ink and an integrated thermal inkjet printhead, the cartridge supports clear technical line output, practical cartridge replacement and daily use in garment CAD rooms, pattern rooms and production-preparation environments.
WECARE offers three cartridge grades — A+, Grade A and Regular — so customers can select the appropriate balance of stability, workload and cost for different plotters and operating environments.

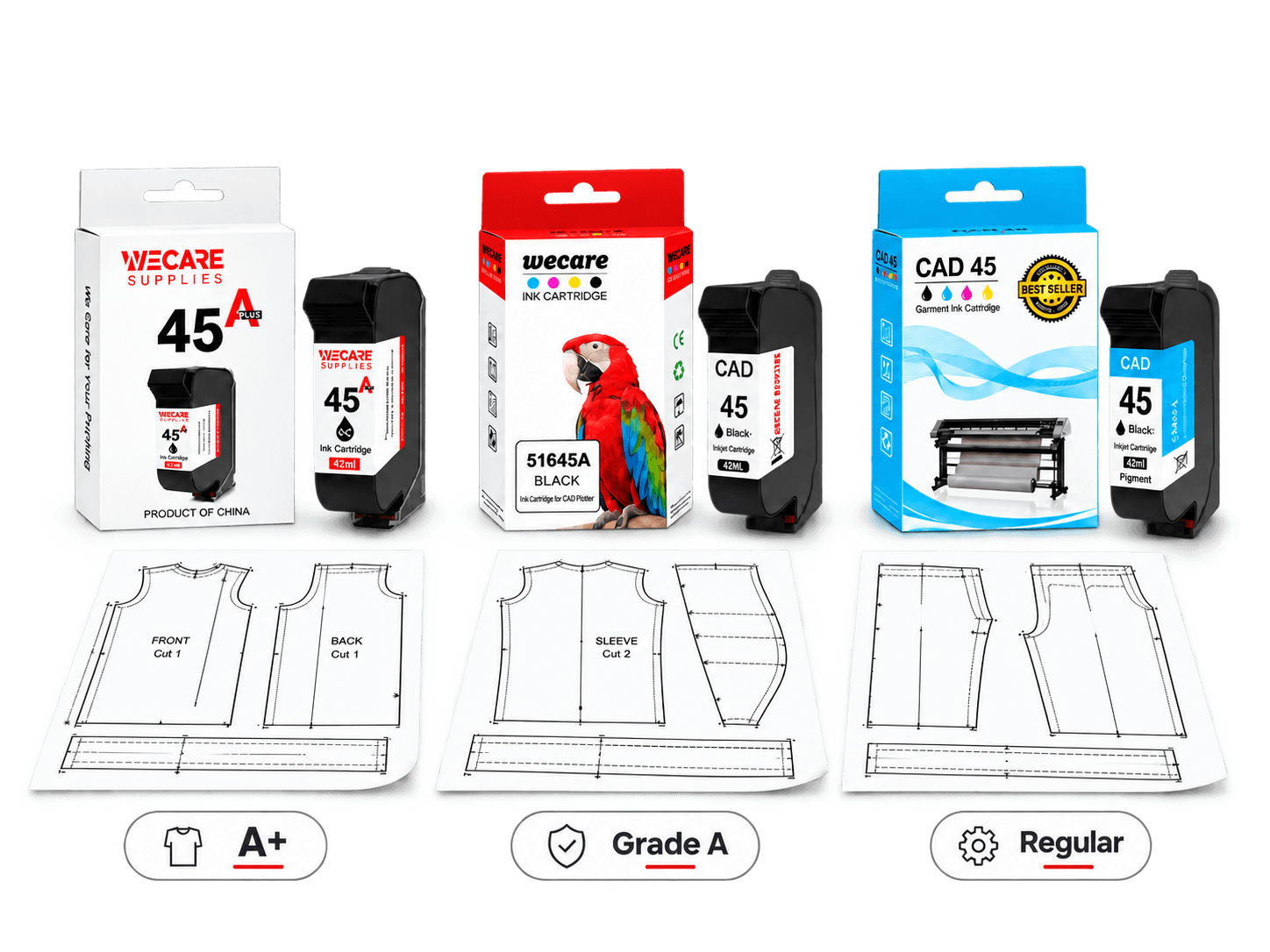

PRODUCT GRADES
A+ is designed for CAD rooms and production environments where print stability, fine line output and continuous daily use are higher priorities.
Grade A provides a balanced option for mainstream garment CAD production, combining practical daily performance with broad workflow suitability.
Regular is a cost-focused option for selected machines and applications where the highest level of print stability is not the primary requirement.
SELECTION GUIDE
Not sure which grade fits your plotter? Send us the machine brand and model for confirmation.
Check CompatibilityMACHINE COMPATIBILITY
A+ and Grade A are broadly recommended for mainstream garment CAD plotters where stable line output and consistent daily production are important.
Winda · BOK · Jingdex · Hanbond · Auri
TKT · Gerber · Algotex · Richpeace · New Power
Compatibility can vary by machine model, cartridge holder, chip recognition and operating setup. If you are unsure which grade to choose, send us your plotter brand and model for confirmation.
Check Compatibility Brand names are referenced only to help identify equipment and workflow compatibility. WECARE does not imply affiliation or endorsement unless explicitly stated.APPLICATIONS

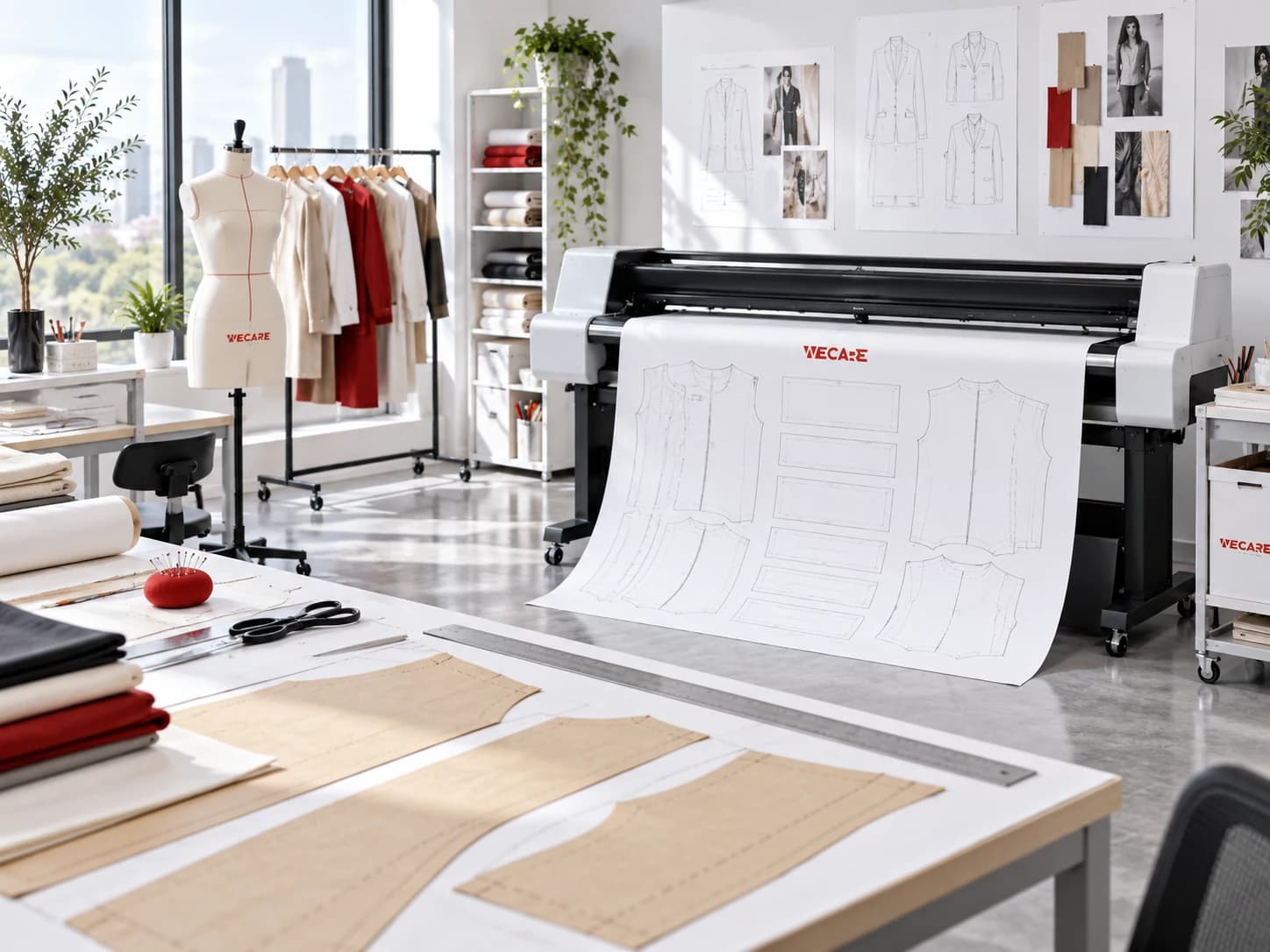

Printing full-size paper patterns for garment development, fitting and production preparation.

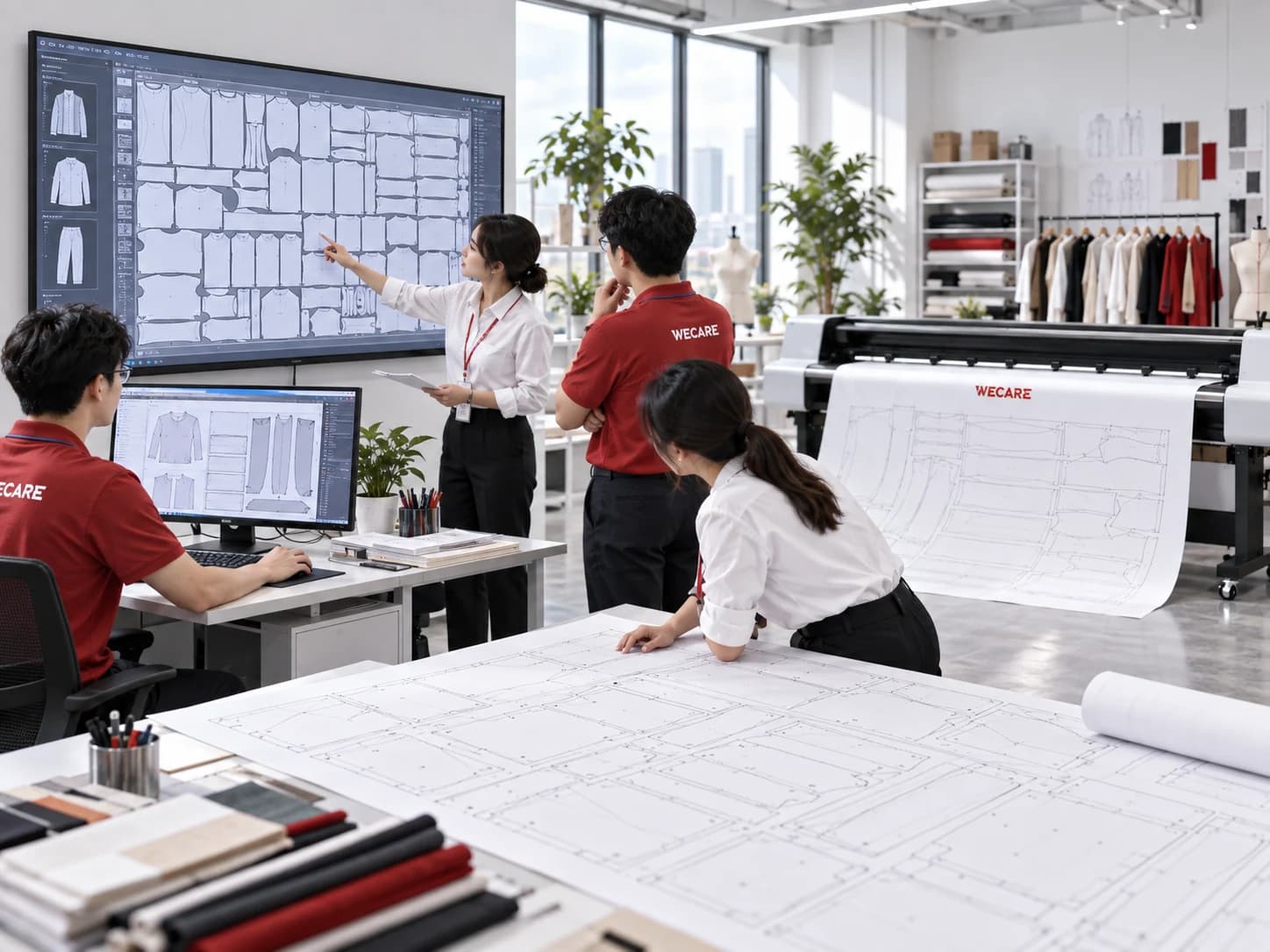

Producing marker layouts used in cutting-room preparation and garment manufacturing.

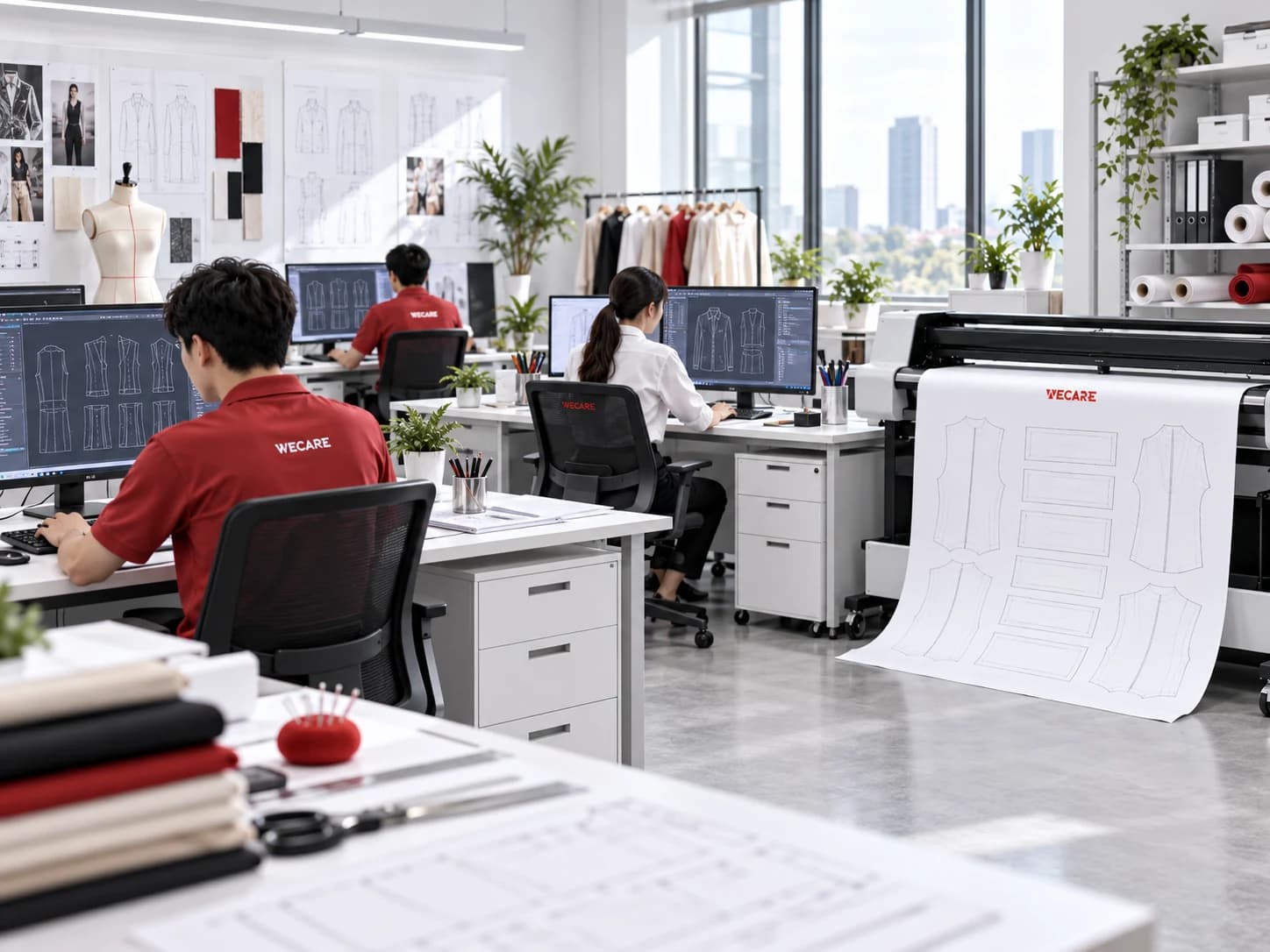

Supporting regular pattern and marker output in garment CAD rooms.
Printing technical lines, pattern references and production-related drawing information.

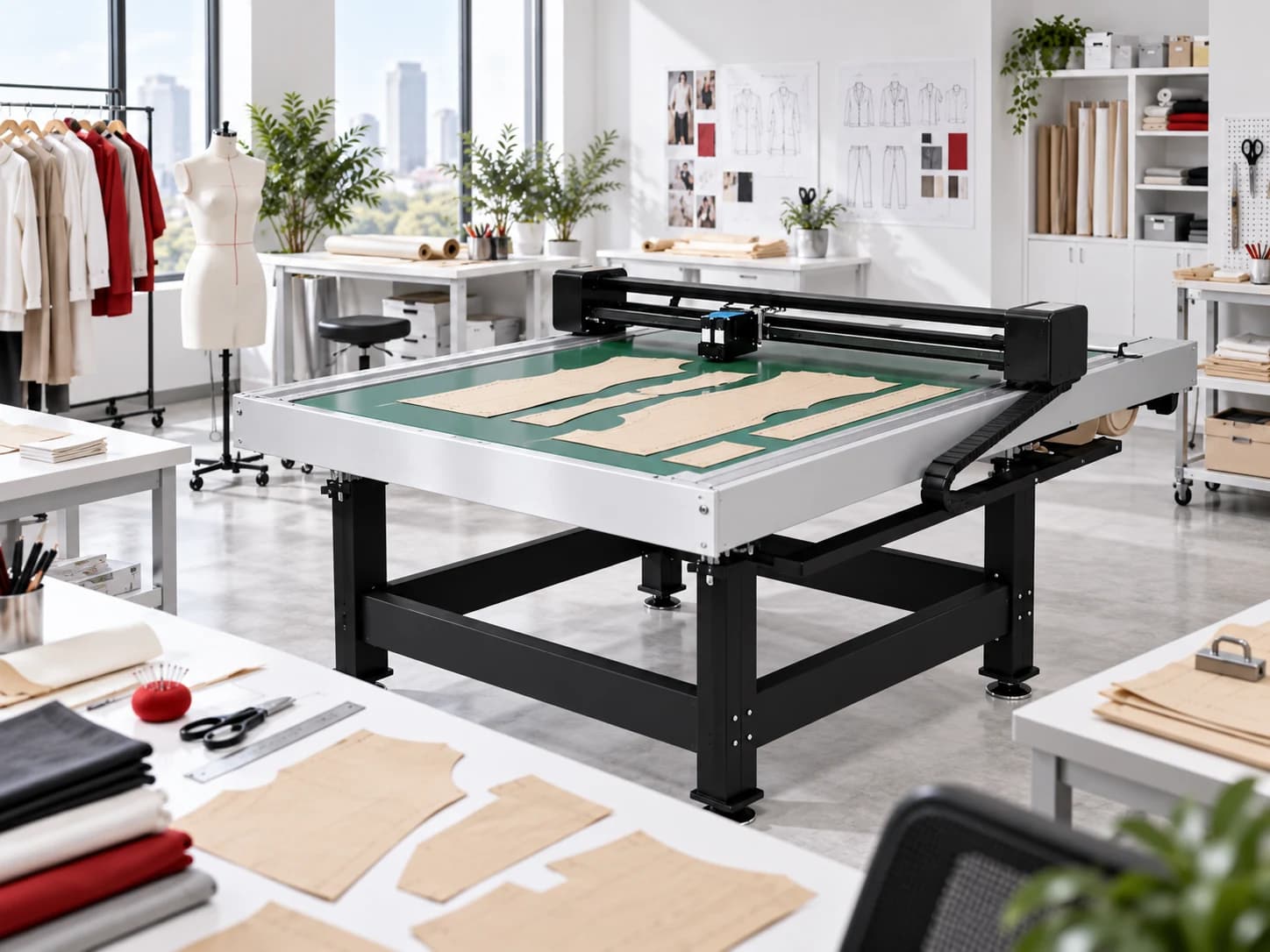

Supporting selected flatbed cutter workflows that use HP45 / 45A-based inkjet marking.

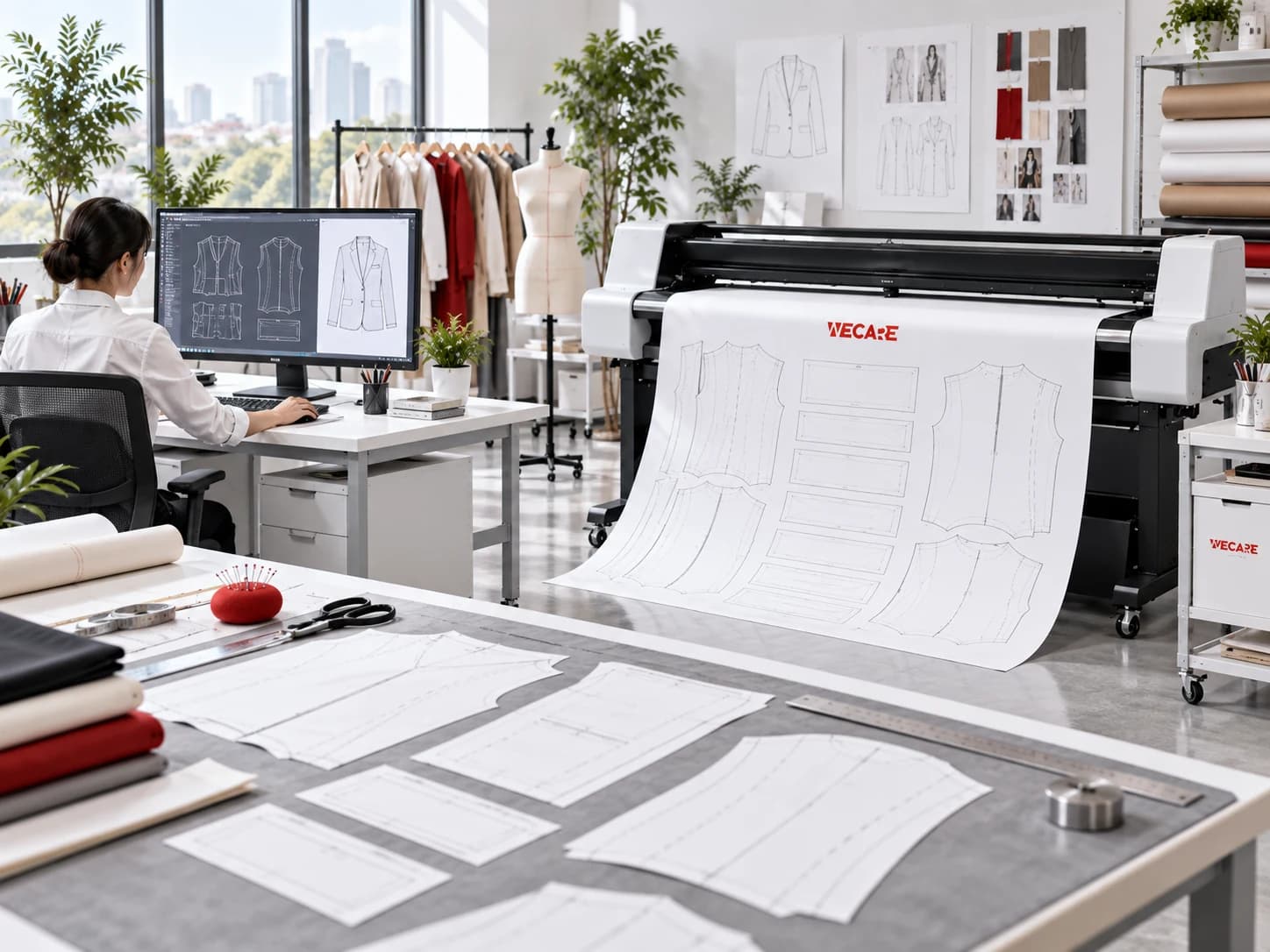

Connecting digital pattern preparation with physical paper patterns and downstream cutting preparation.
WHY HP45?
The printhead is integrated into the cartridge, allowing printhead replacement together with cartridge replacement.
The cartridge format provides practical ink capacity for long garment-pattern and marker plotting jobs.
Pigment ink supports clear technical line output used in garment pattern and marker workflows.
The HP45 / 51645A architecture has been widely adopted across garment CAD plotting systems and related workflows.
TECHNICAL PLATFORM
The core product relationships remain visible in HTML: HP45 / 51645A thermal inkjet architecture, pigment ink, approximately 42ML capacity and garment CAD plotting output.
QUALITY & PRODUCTION
Selected cartridge condition is checked before production processing.
Controlled filling and assembly steps are used to improve consistency.
Cartridge sealing and pressure-related performance are checked during production.
Print output is checked before product release.
Production and quality records are maintained for batch-level traceability and follow-up.
Final verification is completed before packing and shipment.
USAGE & SUPPORT
Check cartridge seating, electrical contacts and printhead condition before replacing the cartridge.
Confirm cartridge installation, contact condition and ink / printhead status.
Minor residue and abnormal leakage should be distinguished before troubleshooting. Contact WECARE if the condition continues.
Keep cartridges sealed before use, store in a stable environment and rotate inventory using FIFO principles.
SPECIALIZED WECARE RESOURCE
Explore detailed HP45 / 51645A compatibility, maintenance, troubleshooting and garment CAD printing resources on our specialized WECARE CAD ink website.
A Specialized WECARE WebsiteWHY WECARE
Different cartridge options for different workloads and machine environments.
WECARE focuses on products and workflows used in garment CAD rooms, pattern printing and production preparation.
Process control and print testing support more consistent product output.
Customers can provide their machine brand and model so WECARE can help recommend the appropriate cartridge grade.
China-based supply coordination is supported by selected local inventory and regional market teams.
FAQ
Product, grade and compatibility guidance for garment CAD rooms and pattern-printing workflows.
A CAD 45 ink cartridge is an HP45 / 51645A-based thermal inkjet cartridge commonly used in garment CAD plotters for pattern, marker and technical-line printing.
CAD 45 describes a compatible product platform built around the HP45 / 51645A cartridge architecture. It identifies the cartridge format and workflow relationship and does not imply OEM authorization, affiliation or endorsement.
Approximately 42ML.
Pigment ink for garment CAD plotting applications.
A+ prioritizes higher stability, Grade A balances regular daily production requirements, and Regular is an economy choice for selected machines and standard workloads.
A+ or Grade A is generally preferred. Confirm the specific TKT model and operating setup before ordering.
A+ or Grade A is generally preferred. Compatibility should be confirmed against the Gerber model, holder and current cartridge reference.
A+ or Grade A is generally preferred, subject to the Richpeace model and workflow configuration.
Regular is more commonly recommended for selected environments including Winda, BOK, Jingdex, Hanbond and Auri, subject to model confirmation.
Some flatbed cutting and plotting systems use HP45 / 45A-based inkjet modules. Compatibility depends on the machine configuration.
WECARE CAD 45 products are designed around the HP45 / 51645A cartridge platform, but final compatibility should be confirmed against the machine model and workflow.
Pigment ink supports clear technical lines, pattern references and marker output used in garment CAD plotting and production preparation.
Keep cartridges sealed before use, store them in a stable environment away from excessive heat and rotate inventory using FIFO principles.
Check cartridge seating, electrical contacts and printhead condition. If the issue continues, send the machine model and print sample to WECARE for support.
Send WECARE the plotter brand, machine model, current cartridge reference and daily workload or application so the appropriate grade can be reviewed.
NEED HELP CHOOSING?
Send us your plotter brand, model, current cartridge and daily printing requirement. WECARE can help confirm the recommended cartridge grade before you order.
